Our R-Panel is a multi-use wall and roof panel used primarily in pre-engineered metal building applications that is designed for strength & durability. These panels are available in all colors, provide 3′ of coverage per panel width, and are custom cut to length.
R-Panel is the definition of commercial metal roofing. With it’s industry leading looks and commercial grade strength, R-Panel can meet your roofing needs.
Very similar in looks to our Tuff-Rib panel, R-Panels’ main differences are in the height of its ribs. It has four 1-1/4″ ribs instead of five 3/4″ ribs, spaced 12″ apart instead of 9″.
- 36″ width coverage
- 1-1/4″ high ribs spaced 12″ apart
- Can be installed over open framing or decking/plywood
- Gauges: 26ga
- Finishes: Akzo-Nobel® Paint or bare Galvalume®
- Warranty: Painted – 40 years, Galvalume® – 25 years
- Minimum roof slope 1:12
- All Colors are Energy Star Rated®
Some metal roofing tries to look great, while performing. R-Panel was designed purely with performance in mind. It may look nice, but that’s just a by-product of its strength.
Low Slope Expert
When you have a roof with slopes as low as 1:12, R-Panel is your solution. It’s higher-than-average 1-1/4″ ribs give it what it takes to perform on nearly any roof.
For slopes with 3:12 or less, we recommend using our butyl sealant between the laps for greater protection, as well as stitch screws that pull the panels tighter together.
Spans the Distance
R-Panel can be installed on open framing up to 5′ apart, which is why it is used on so many steel buildings. In fact, an estimated 80-90% of metal buildings have R-Panel installed on it for this very reason.
You will not find a more competitively priced commercial roofing material anywhere, period. Whether you go with our 40 year warranted industry leading paint system, or the highly popular 25 year warranted Galvalume® zinc-aluminum coated system, you will be amazed by our low prices.
Everything You Need to Finish It

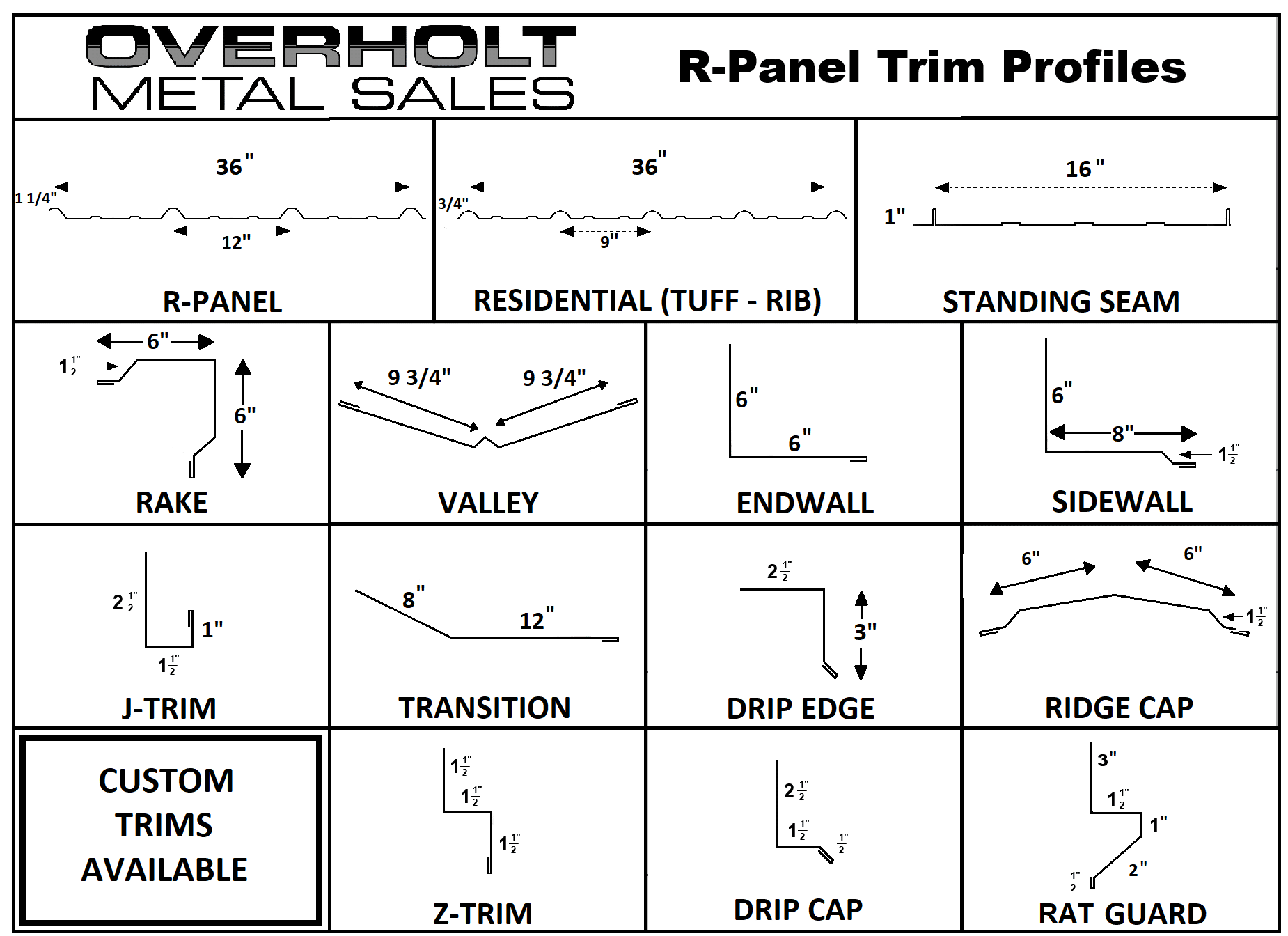

Formed ridge, fasteners, sealant, and about everything else you need to finish your R-Panel roof or wall project can be found here.
Overholt Metal Sales is there to help you, whether you are roofing a small garage, large home, or building of any type. Let us work with you on your project to figure out what you need.
Contact Us To Get Started!
We know choosing the right metal roofing color for your house or building can be tough. Choose from 19 Metal Roofing Colors.
IMPORTANT: Please note these colors are not exact but are simulated to give an idea of how the colors will appear on the roof.
